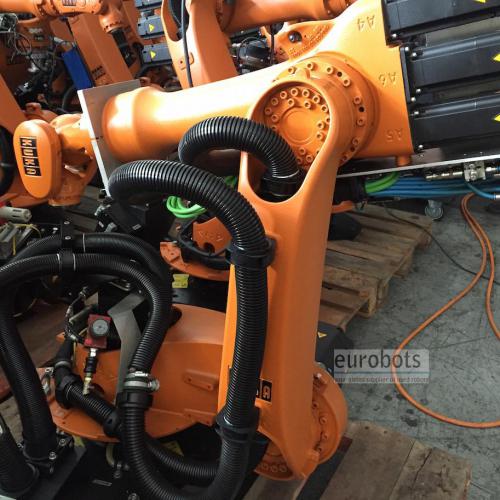

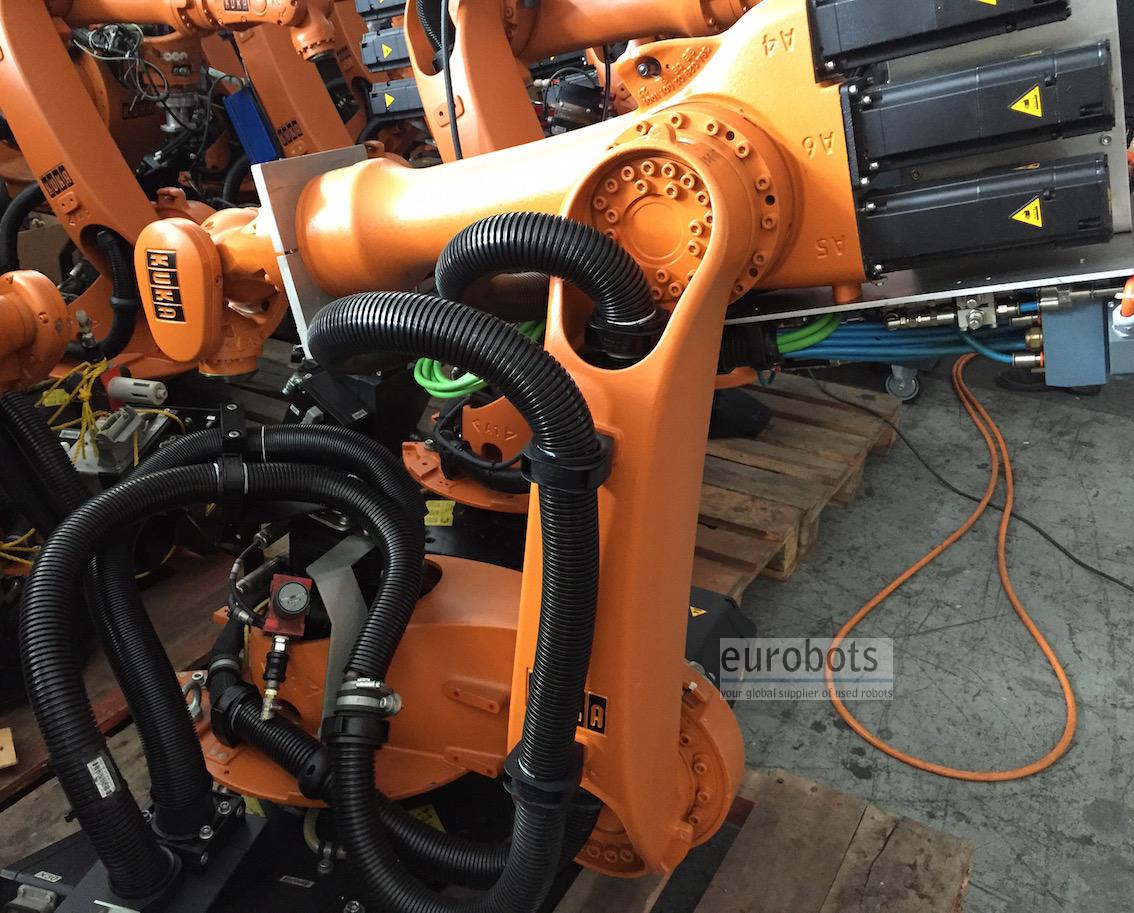

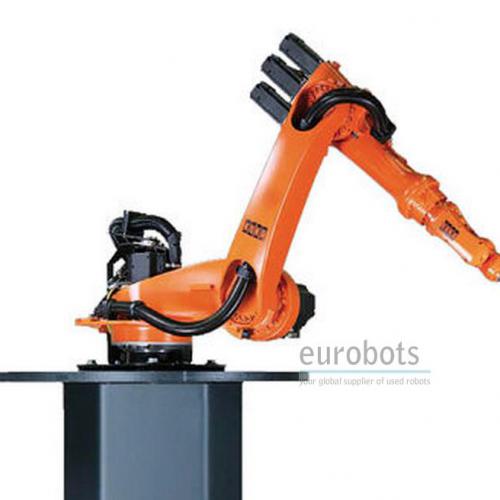

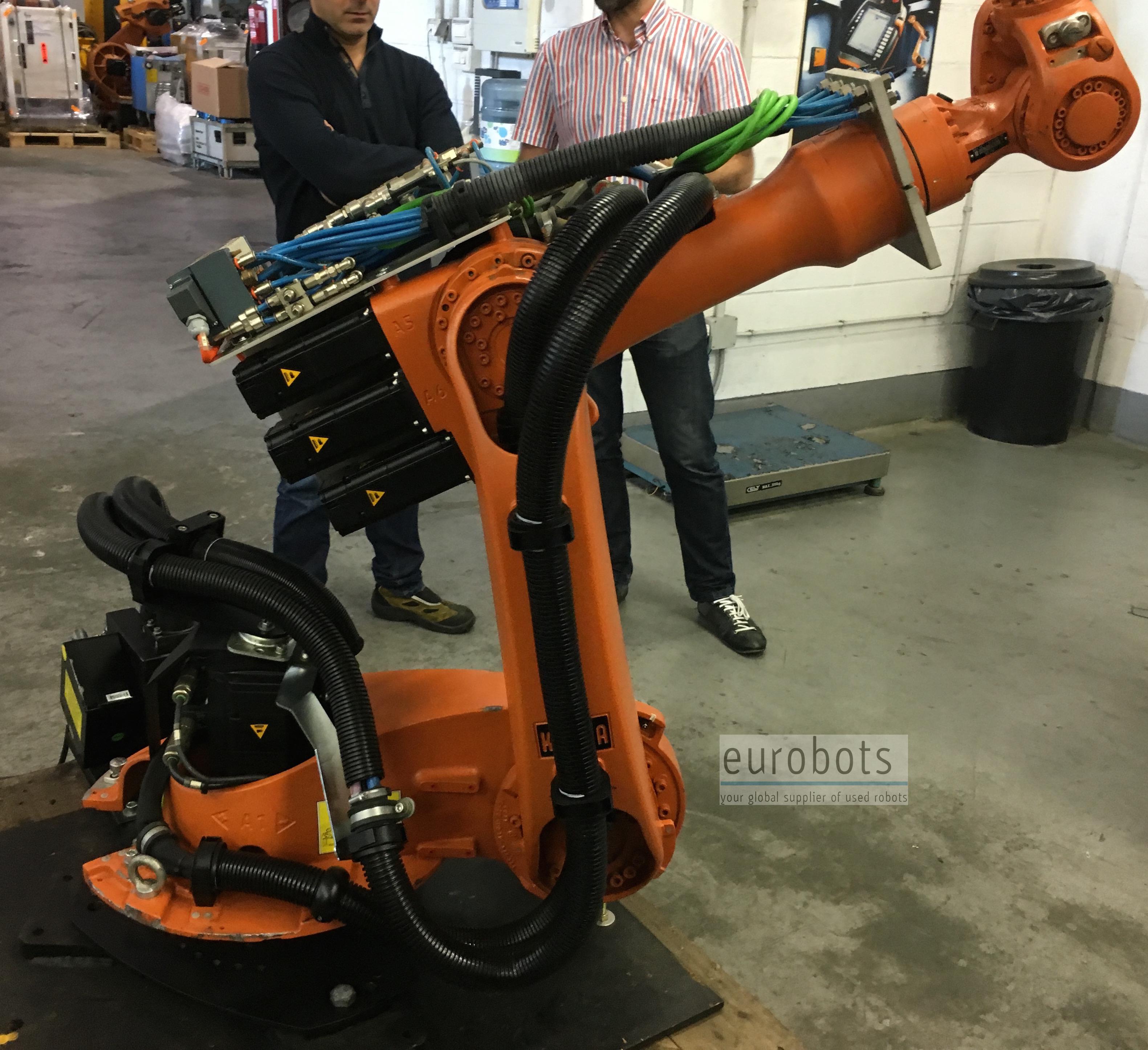

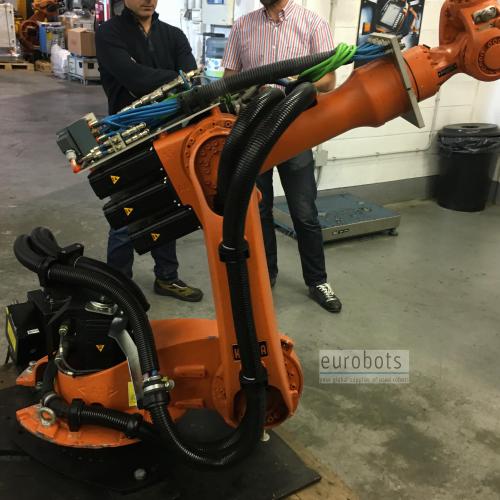

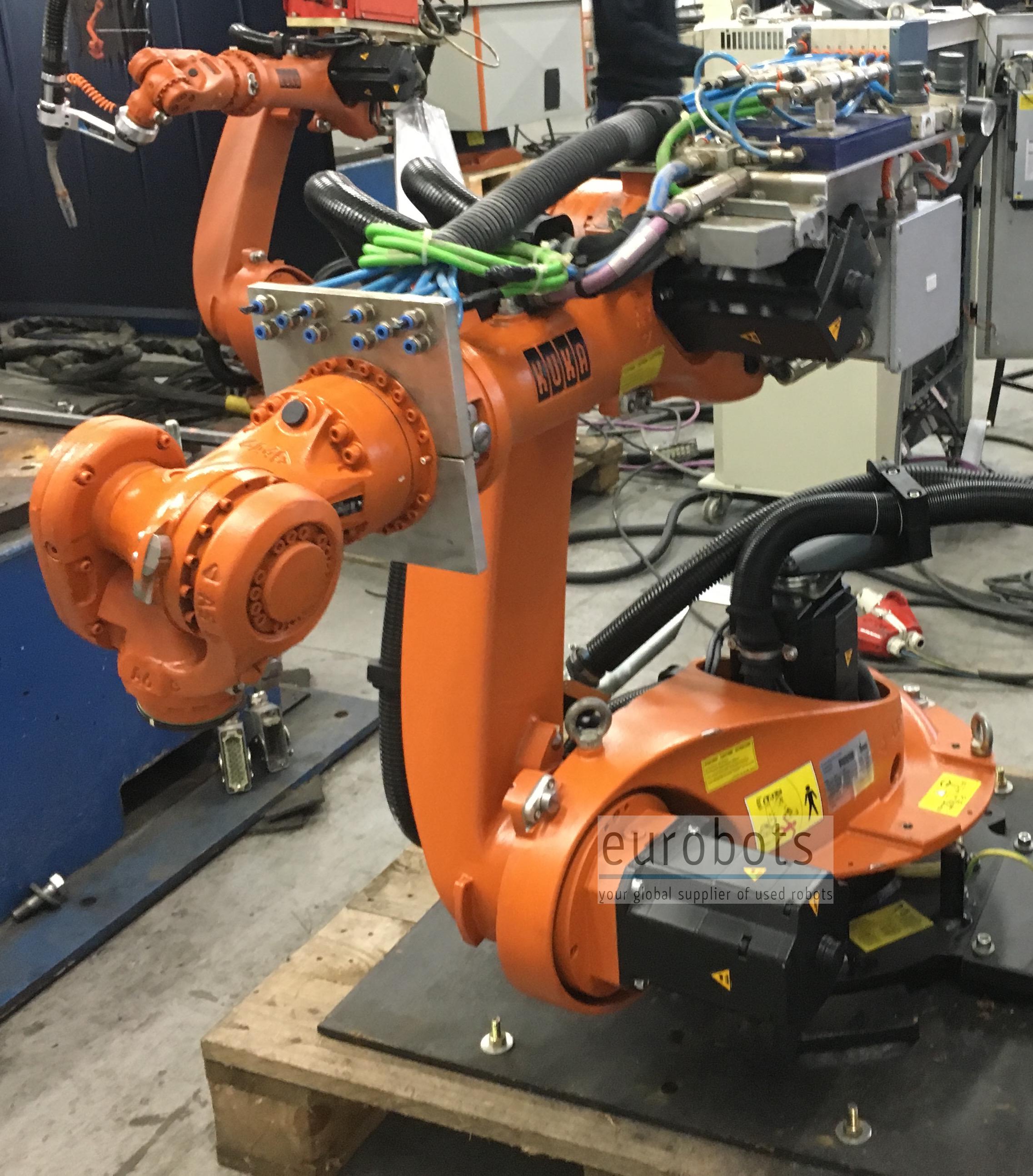

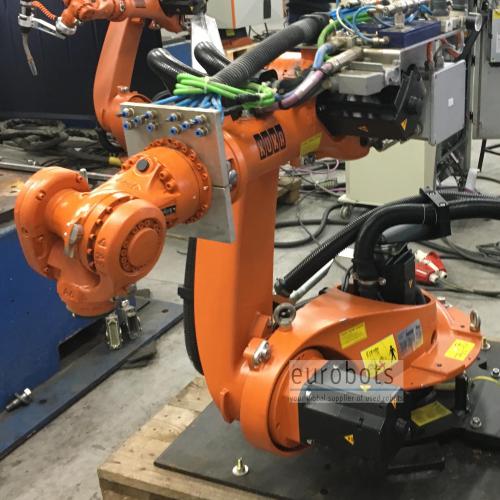

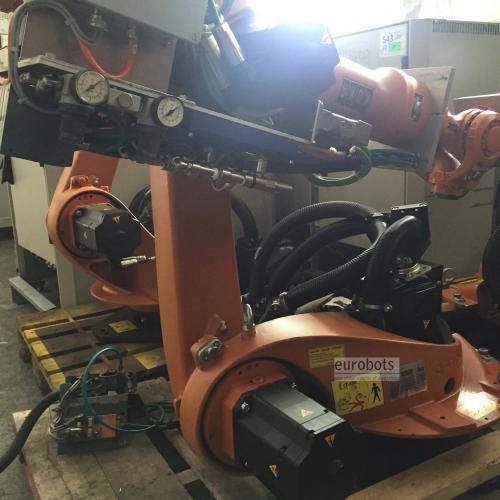

KUKA KR16 ks

В ожидании более запаса

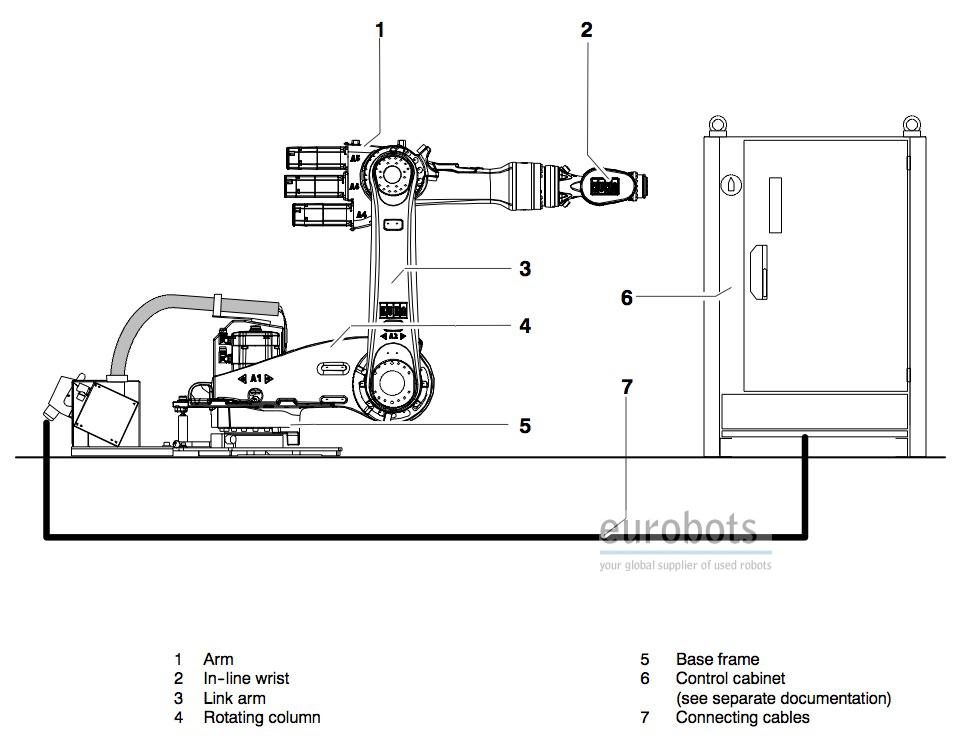

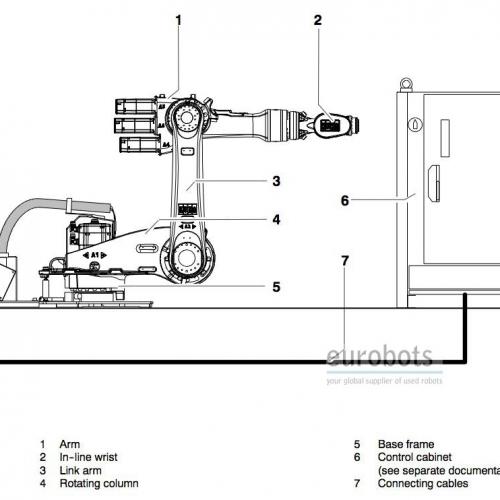

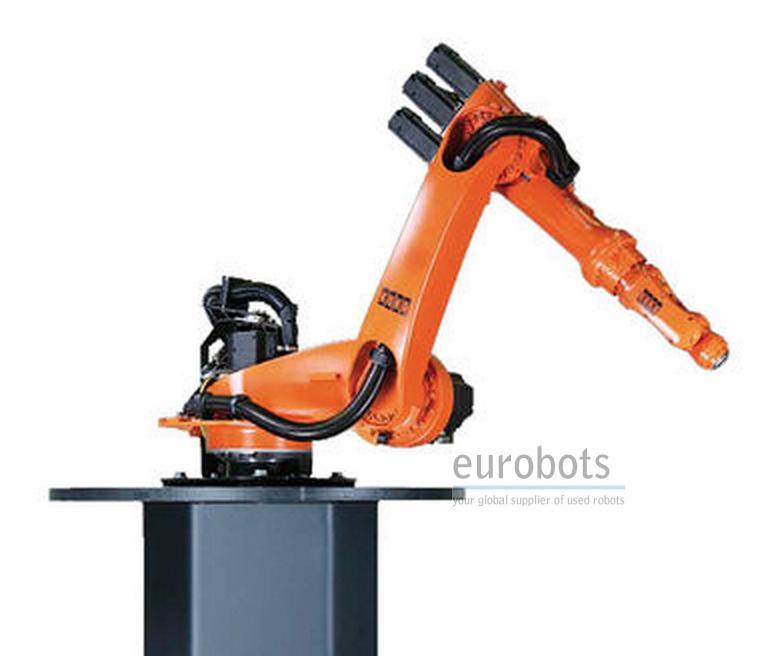

KR16 version for loading and unloading parts from an elevated position, the so called Shelf versions. To the speed and accuracy of this 6 axis industrial robot now a greater horizontal arm reach up to 1.8 m as the axis number two can move way below the ground level of the robot. Other used can be arc welding, plasma cutting, general handling and assembly.

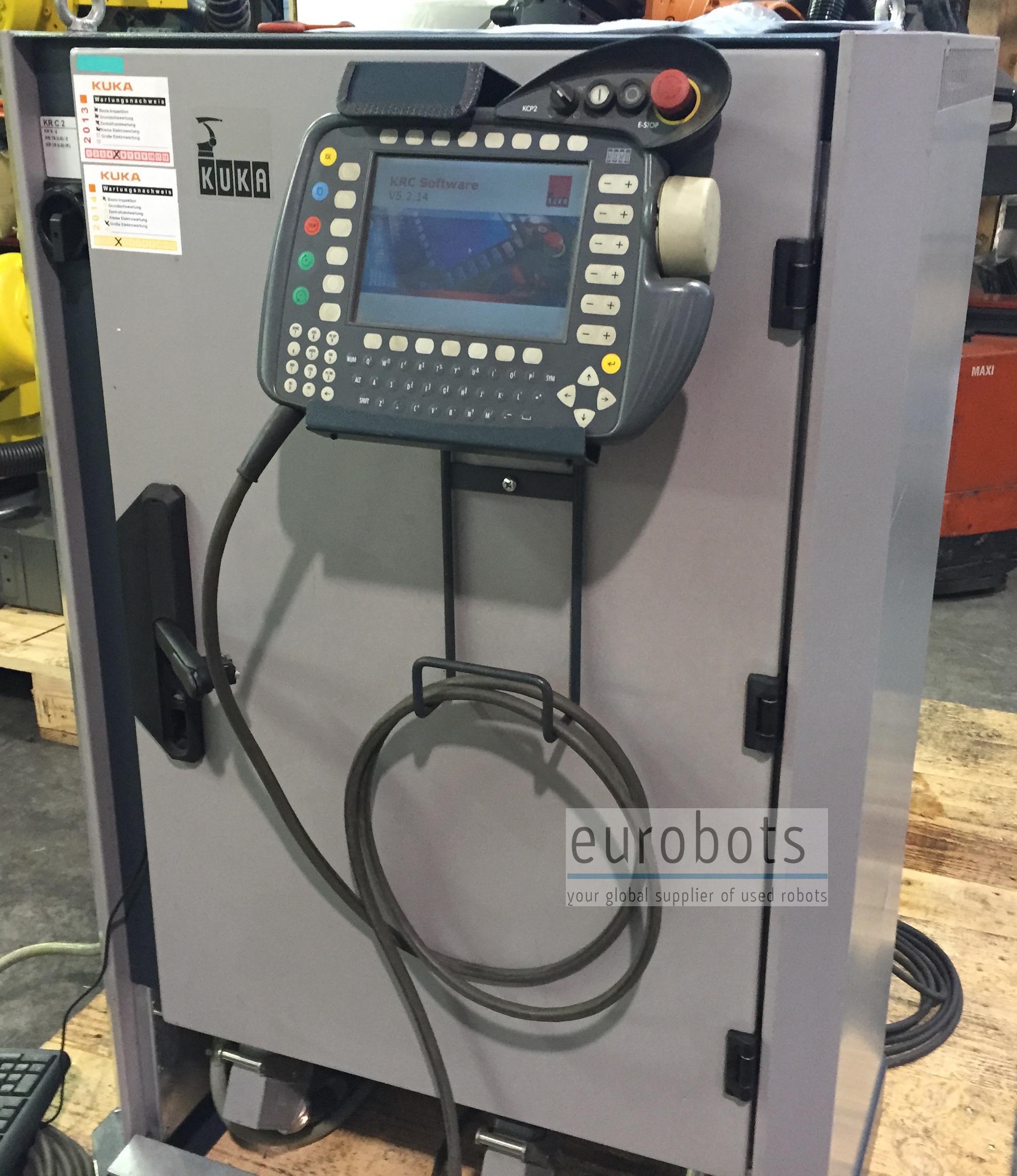

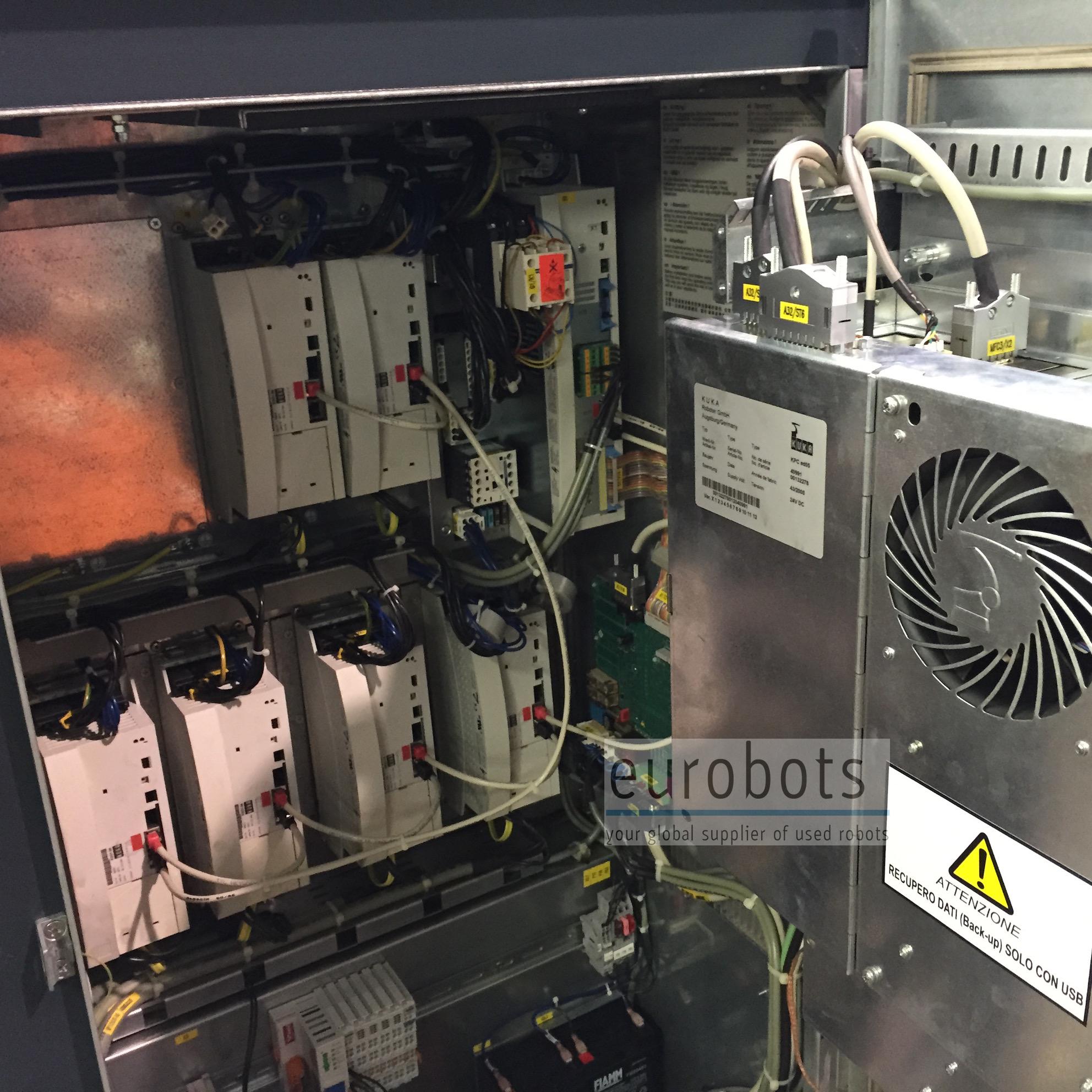

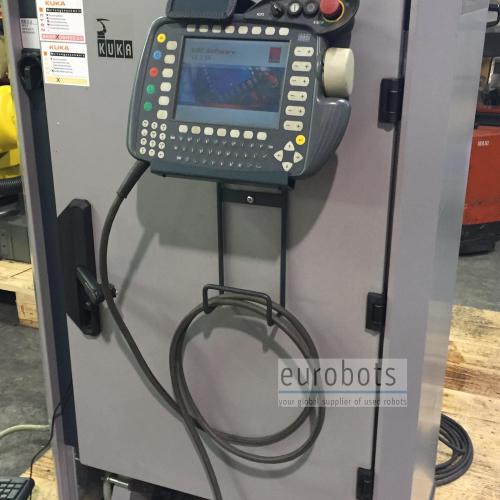

This unit goes with the versatile and powerful KRC2 Ed05 controller. There are also Foundry versions for harsh conditions.

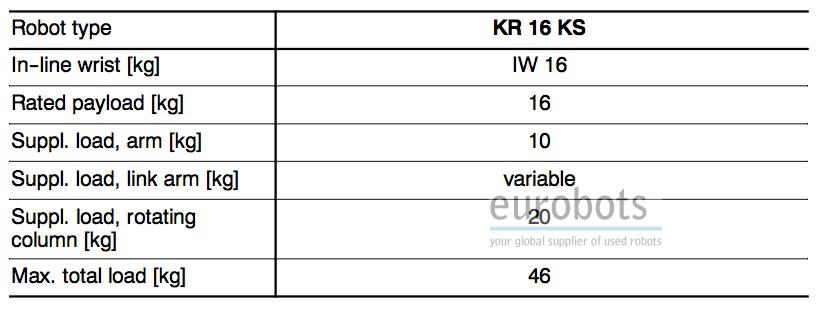

Robot Info

  • Number of axis: 6

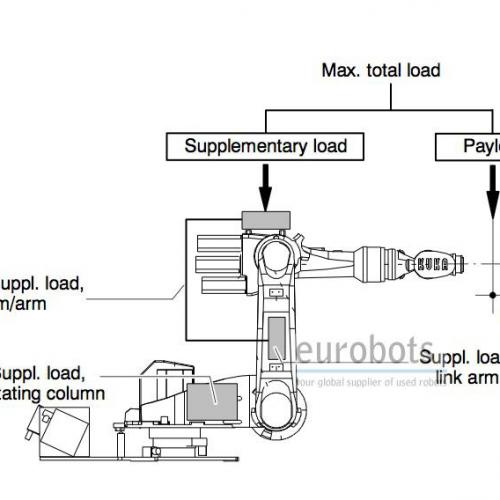

  • Maximum Load of Robot: 16 Kg

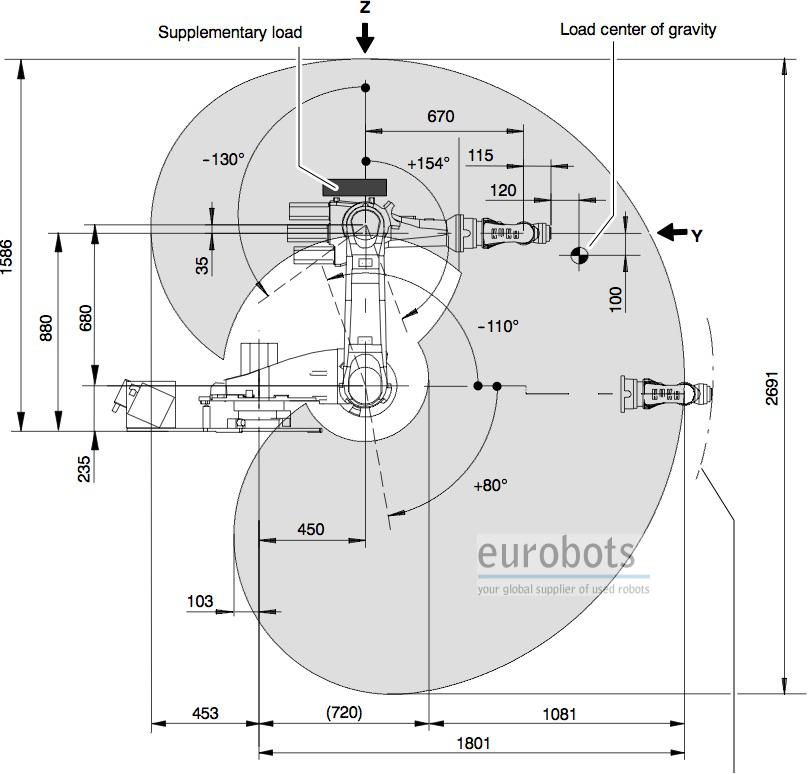

  • Maximum Reach: 1801 mm
  • Repeatability: +-0.1 mm
  • Controller: KR C2 Ed05

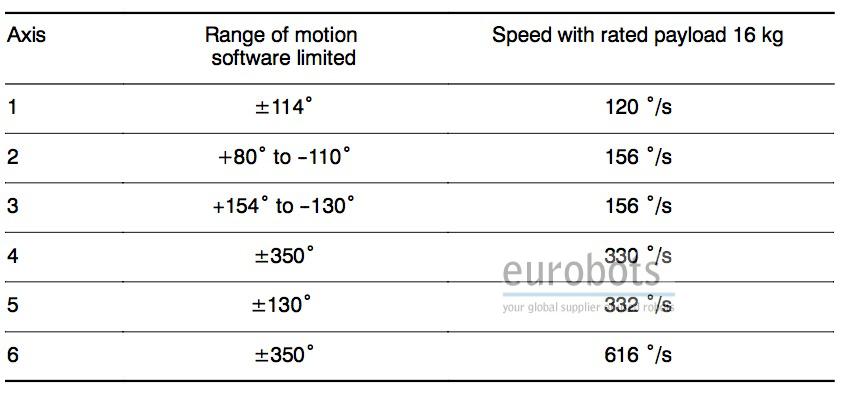

Robot Motion Speed

  • Axis 1: 120º/s
  • Axis 2: 156º/s
  • Axis 3: 156º/s
  • Axis 4: 330º/s
  • Axis 5: 332º/s
  • Axis 6: 616º/s

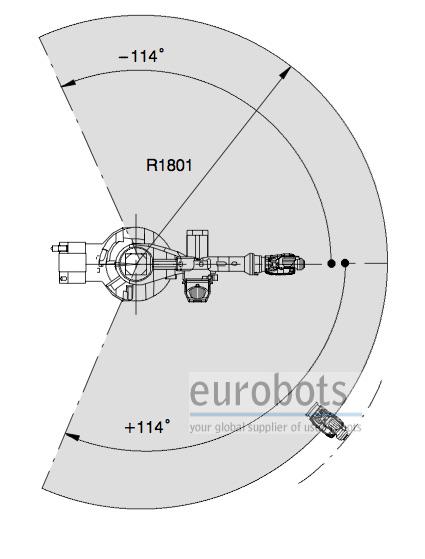

Axis range (in ºs)

  • Axis 1: +-114º
  • Axis 2: +80º to -110º
  • Axis 3: +154º/-130º
  • Axis 4: +-350º
  • Axis 5: +-130º
  • Axis 6: +-350º

Области применения

Дуговая сварка , Погрузка и разгрузка деталей , Обработка деталей , Склеивание - склеивание , Плазменная резка
